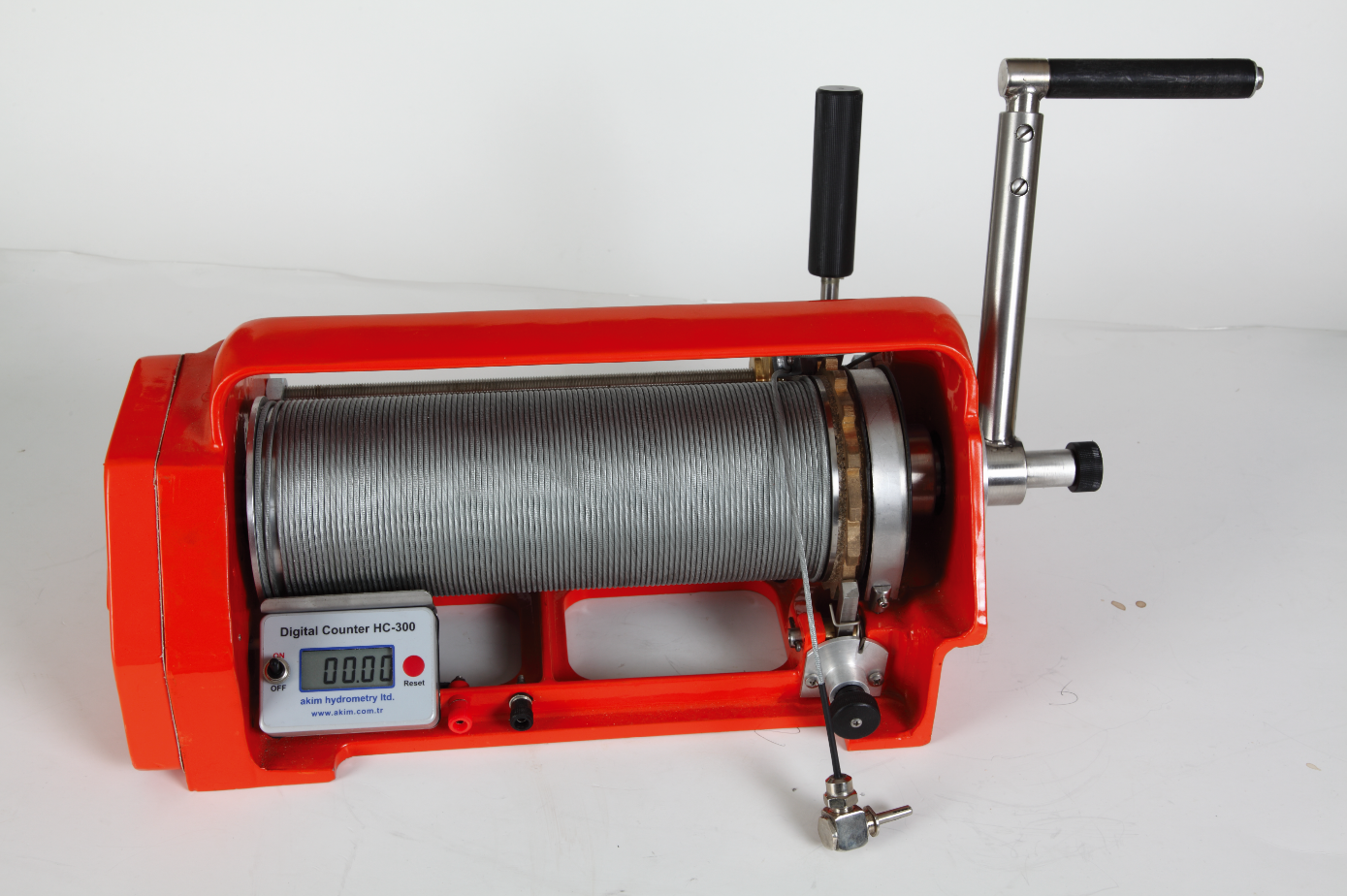

AKIM-WINCH GAUGE (AKIM-CRANE)
Brand: AKIM Model: HC-300
• Lightweight Construction - Aluminum Casting Body and Drum
•Portable
• Automatic Weston Braking - the safety brake that locks the output enters the circuit when the drum is released
• Free Fall Brake - allows quick weight down to the water surface
• Built-in depth counter - protects against external damage
• Silver Plated Slipring (Bracelet) - Transmits the signal from the drilling drum to the muline counter.
• Single Layer Steel Signal Cable on Drum - Prevents internal conductor from being damaged and replaced in a short time
• Single, extendable drum.
Definition:

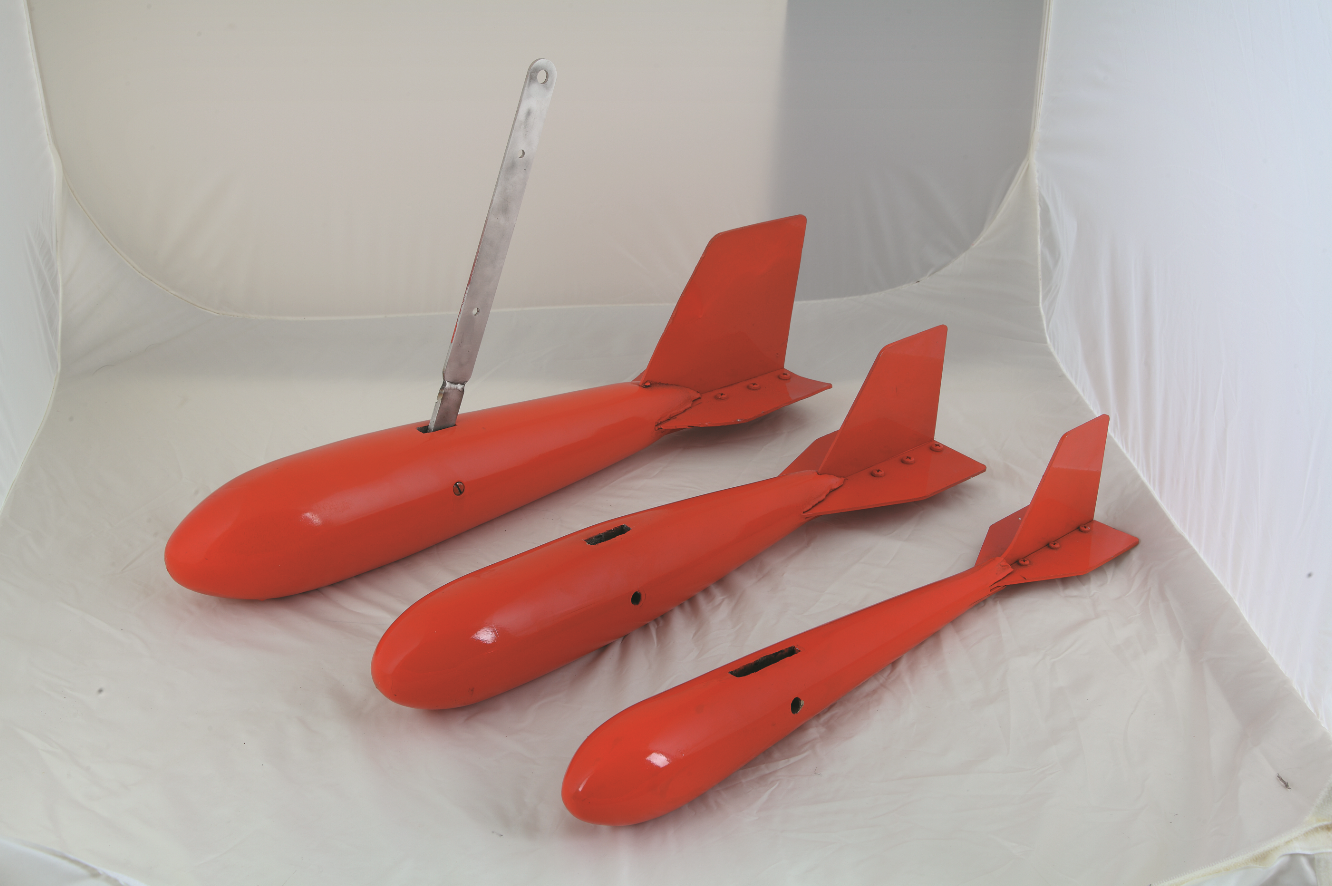

AKIM-WINCH GAUGEThe measuring output is a manually controlled handset that can operate with measuring weights of at least 50 kg.
The AKIM-WINCH GAUGEis a very compact device designed for land use and maintenance.
The use of aluminum keeps the weight of the appliance to a minimum and can be used without assistance by a single person.

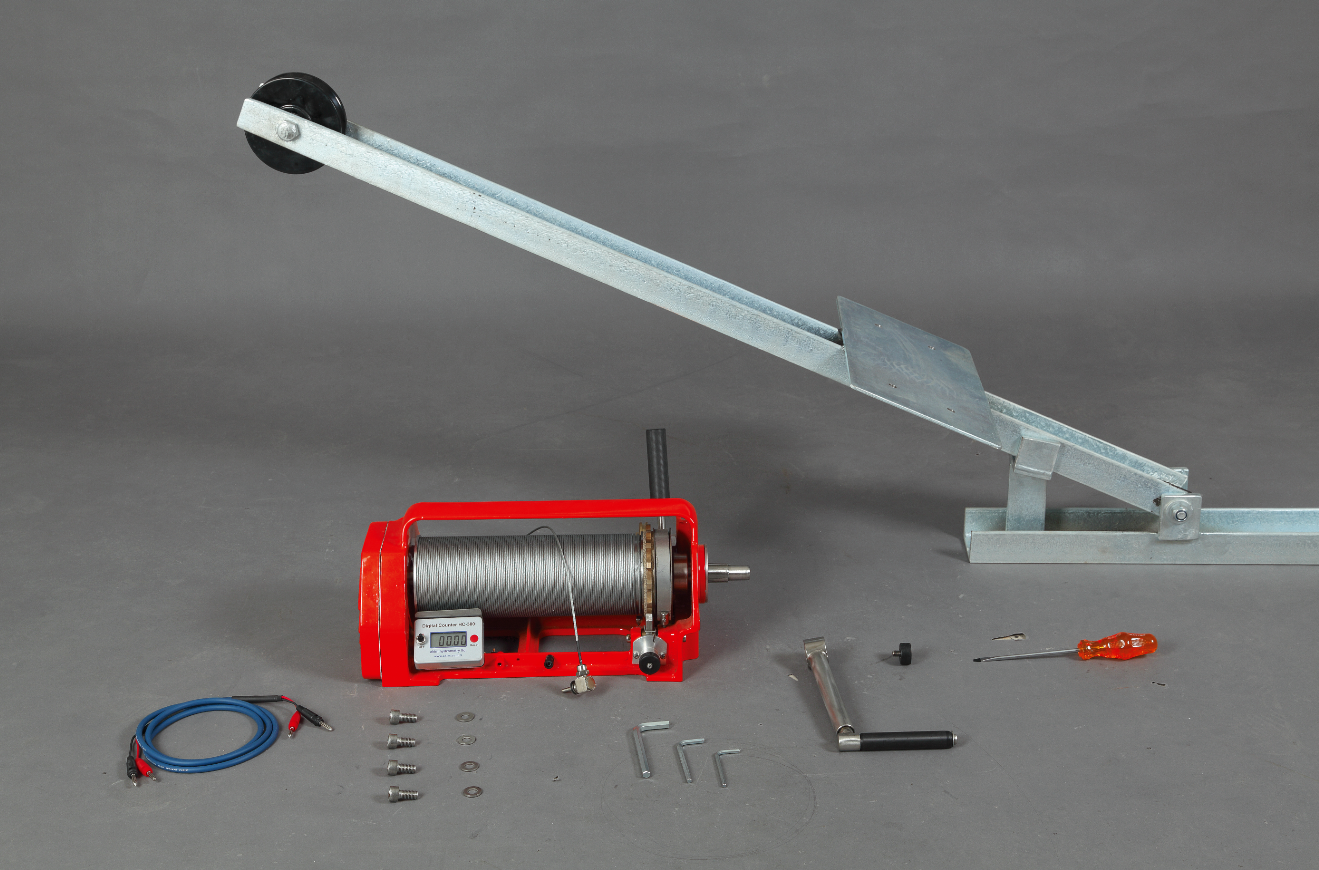

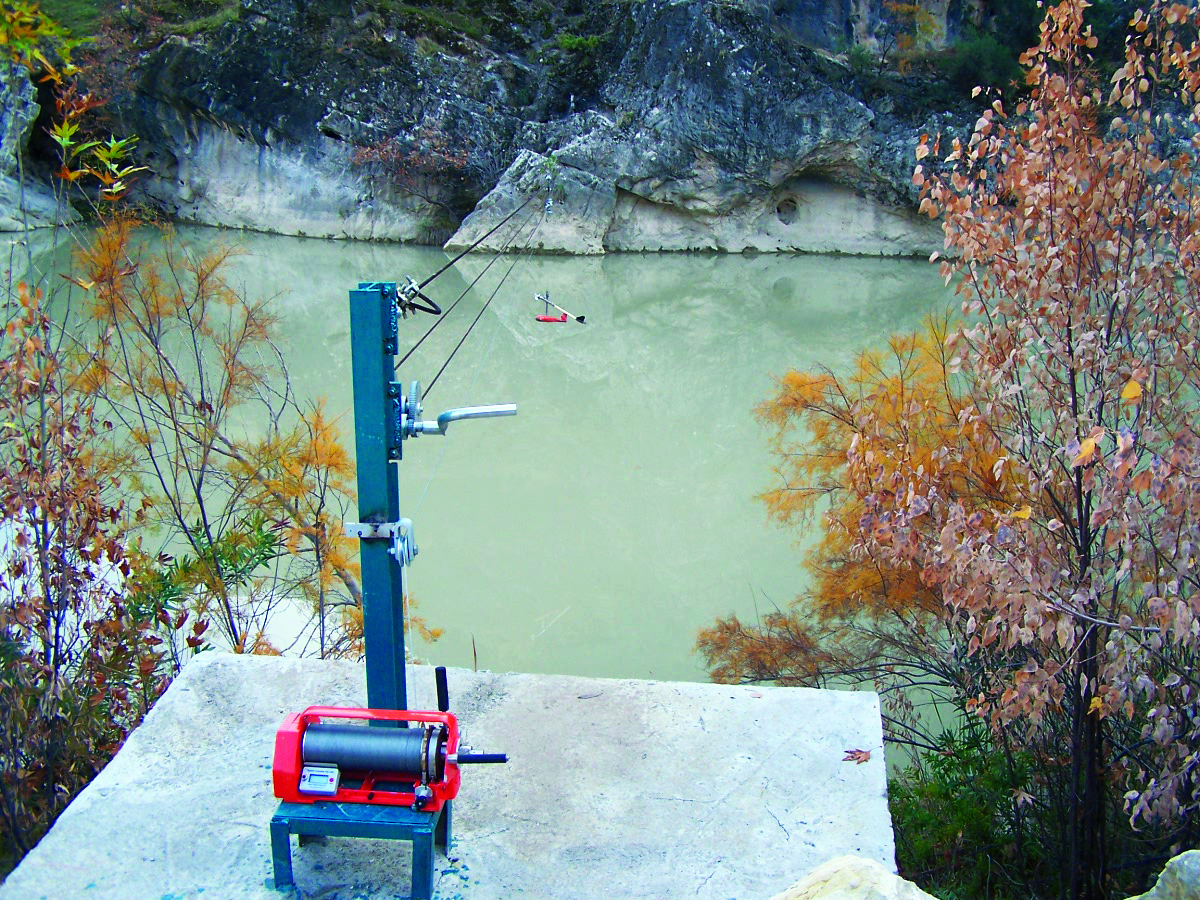

AKIM-WINCH GAUGE is normally placed in the boom or in the wheeled ferrule for use on the edge of the bridge.
A light weighted service car is also used for bridge measurement.
Technical specifications
Load Capacity: Designed for loads of at least 50 kg.
Measuring Rod: Aluminum casting 300 mm Depth counter with circumference, silver-plated slipring (bracelet) and centimeter unit placed in the body.
Drum Capacity: 24 m - 3.2 mm (1/8 ")
30 m - 2.5 mm (1/10 "), Tanbur Diameter: 100 mm.
Operation: Manuel
Metric Numerator: Displays the vertical distance in 1 cm steps. It is reset with a key.
Suspended: 30 m. In its length, it is a single piece with a diameter of 2.5mm.
Dimensions: Length 460 mm (18 "), Width 210 mm (8.3"),
Height 230 mm (9 "), Weight 12 Kg (26.5 lb).
