Closed pipe flowmeters are an industrial device for measuring the speed and flow of fluids using an ultrasonic system.

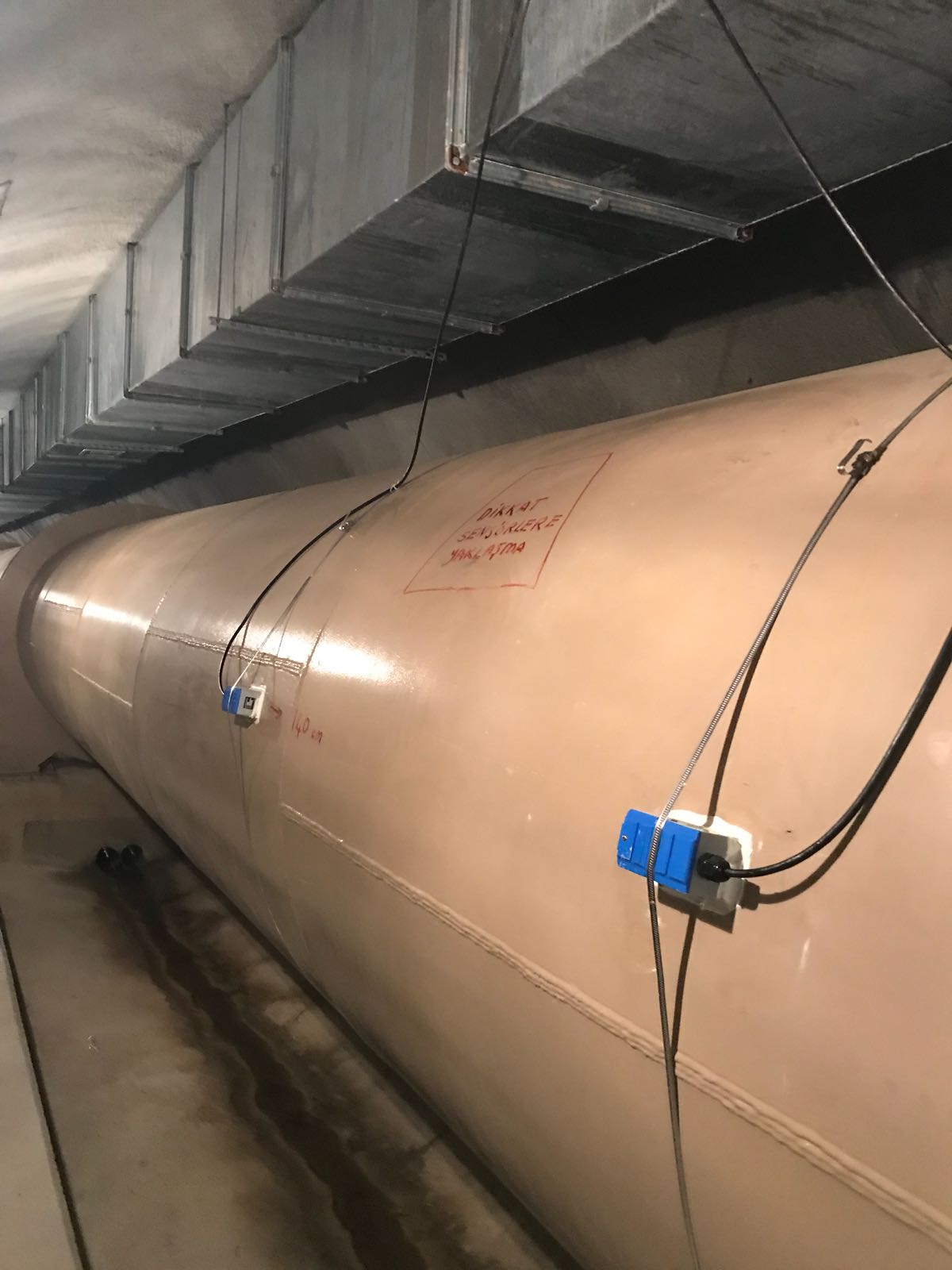

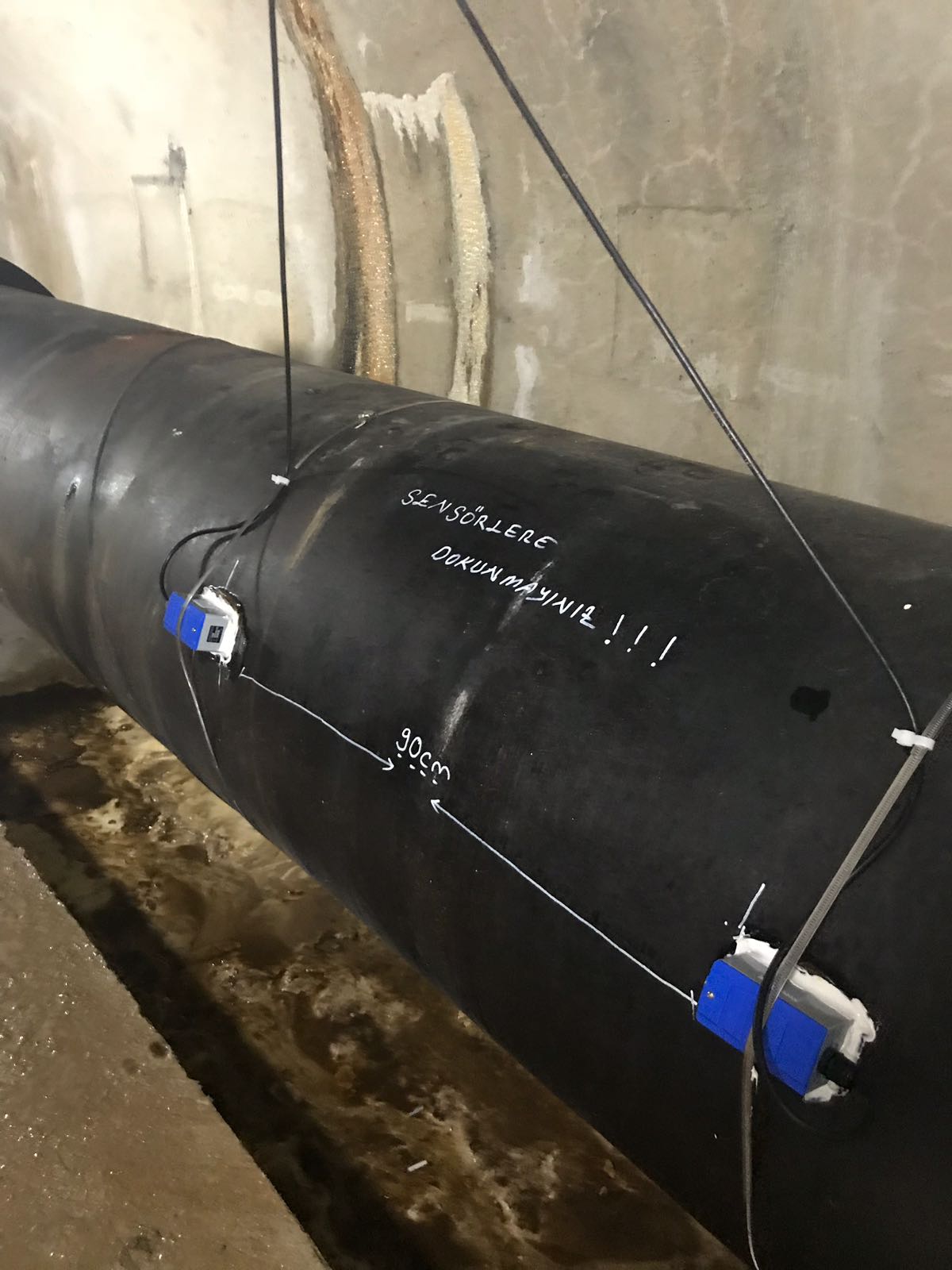

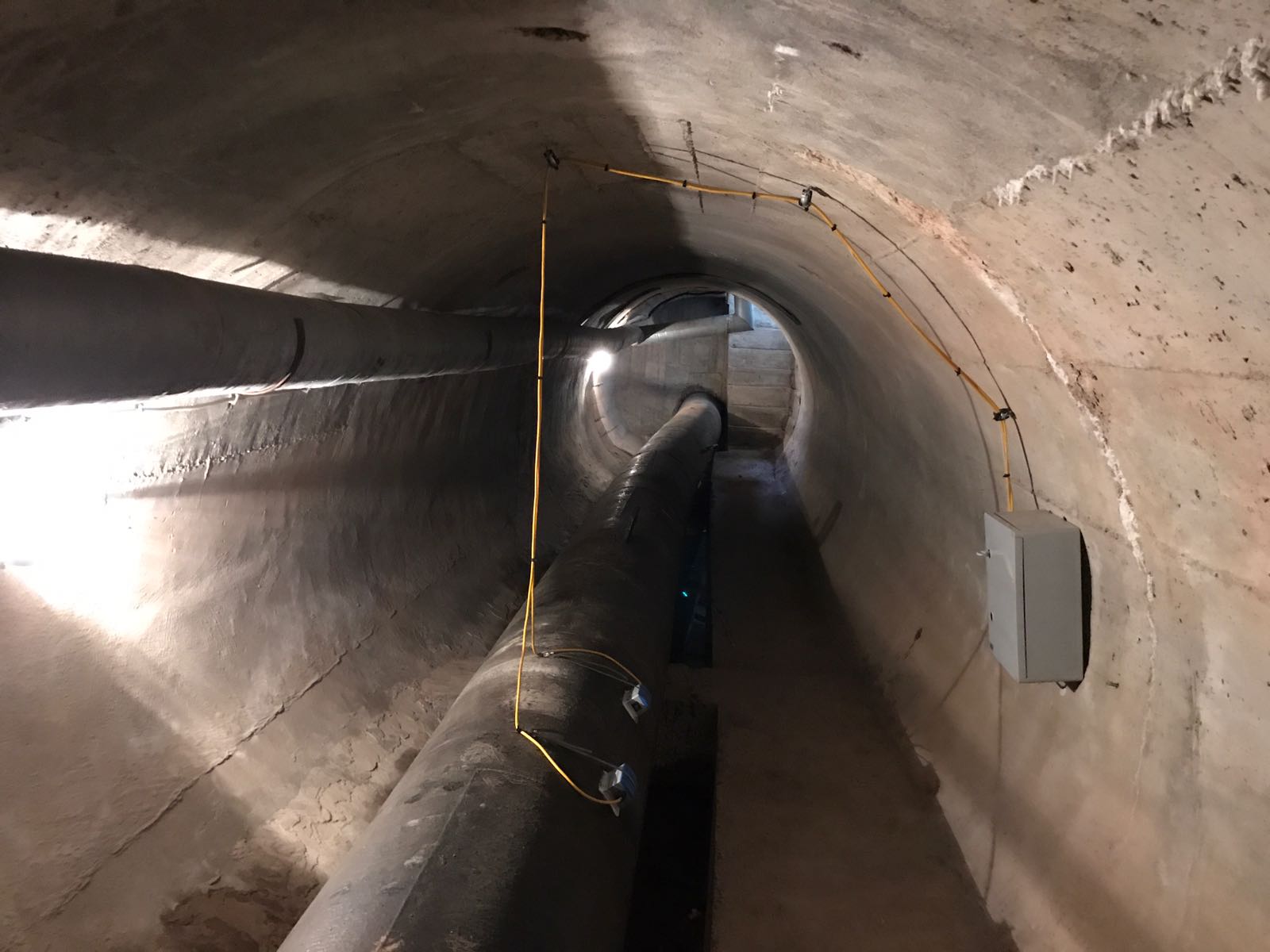

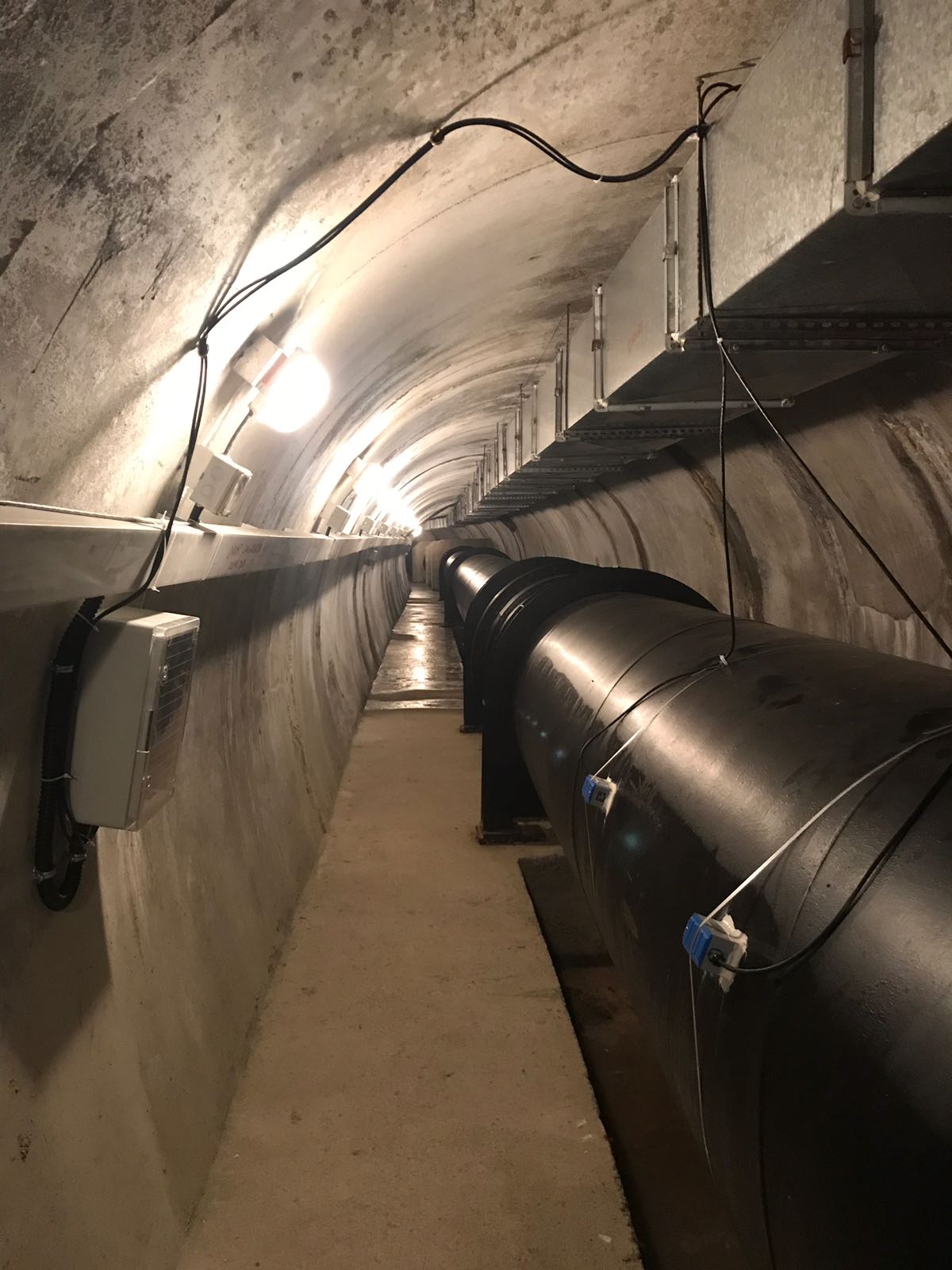

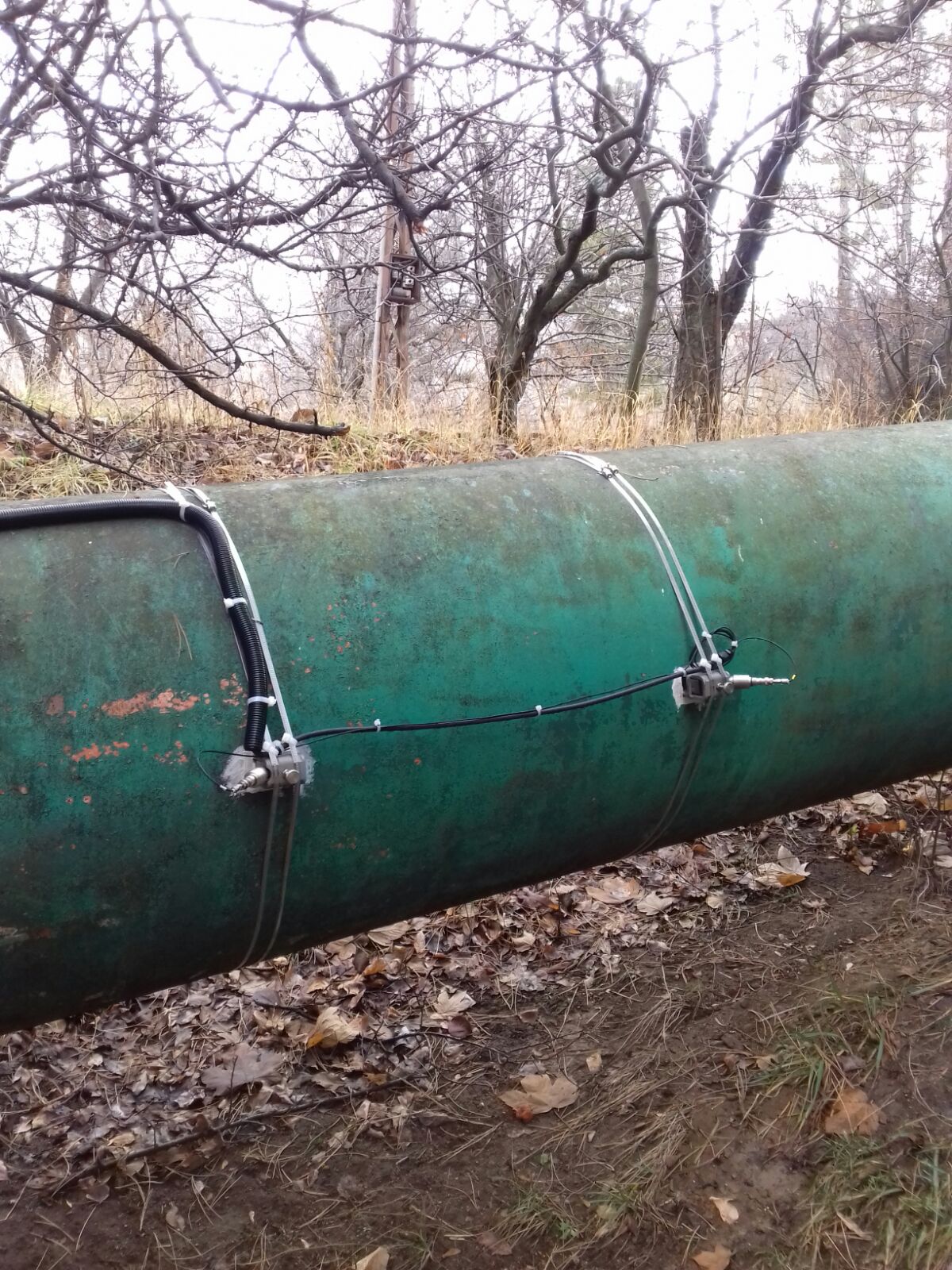

Installation and use is simple and can be deployed without any damage to the pipe.
The capacity of any fluid to measure is (water, waste water, particulate water, oil, gasoline, etc.).
By supporting different communication protocols, the measured information can be recorded in data loggers in different brands and models.
Indicates that the flow meter does not flow in the case of stationary liquid with the zero point setting and does not add this information to flow amount.
Power consumption is low.
If pipe information is entered correctly, it works better with an error margin of 1%.
| Memory | 1GB Data Flash Memory |
| Operating Temperature | -20°C between +60°C |
| Measurement Range | 0..... +-12m/s |
| Accuracy | %1 |
| Repeatability | %0.2 |
| Monthly Time Deviation | +-1min. |
| Logging Time Range | 1' , 5' , 10' , 15' , ...60'....1440' |
| Interface | RS-232 , RS-485 , USB |
| Output | 4...20mA |
| LCD Screen of Logger | 128x64 Grafic Dot Matrix |
| LCD Screen of Transmitter | 2x20 Character LCD |
| LCD Operating Temperature | -20°C between +70°C |
| Keypad | 4 Button Keypad |
| Backup Battery | 3.6V Lithium (for RTC) |
| Protection | IP65 |
| Sensor Protection | IP67 |
| Operating Voltage | 12........ 24 V DC |
