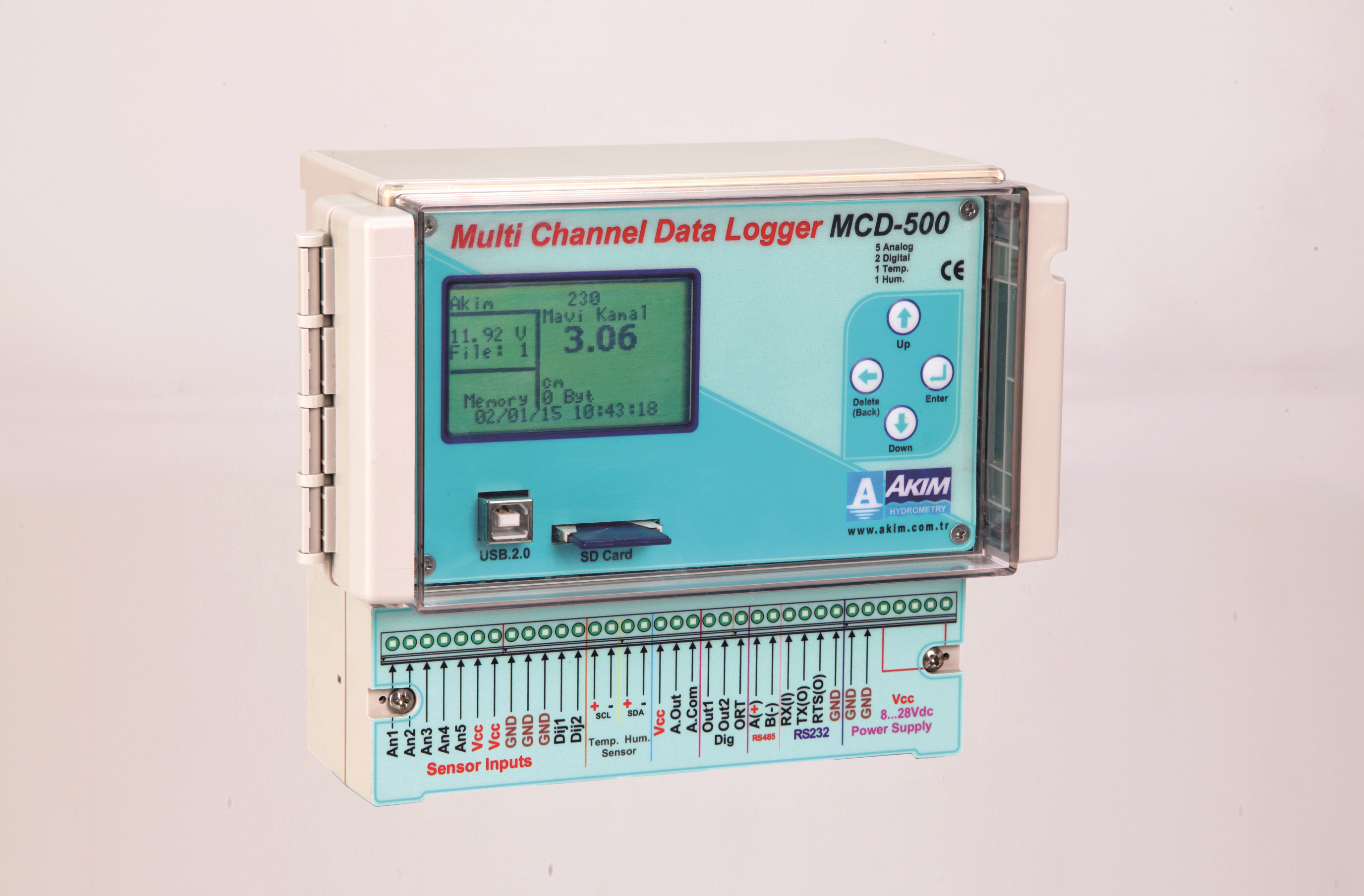

9 Channels
5 Analog, 2 Digital, 1 Humidity, 1 Temperature Sensor Outputs
Analog Output: 4…20 mA and 0… 2,5 V.
Digital Output: Puls, Frequency and Period measurements
1unit Analog Output 4...20 mA.
For Analog Output 24 bit Digital Resolution
Each channel can be calibrated and changed through software program
Each channel name and other data can be entered through software program
2units Digital Output (to control Alarm and Motor) Transistor NPN output max. 100 mA.
Record Gap: 1…1440 min. Each channel record gap can be set up separately through software program
128x64 bit Graphic Dot Matrix LCD screen
Battery Level, Instant Level, Each Channel status and Memory details can be seen on the screen
Recorded values can be seen on screen through keypad on the logger
Interface: RS-232, USB (Virtual Com port (CDC)) 2 Types Recording:
-Instant Data Record and Average Record per minute
-Instant Values and Instant Min./Max.Values, Daily
RS-485 port for instant values and remote interface
Average Values and Daily Min./Max.Values are recorded
Memory Capacity: 8 MB (1.334.000 data) Data Storage Capacity: 100 years
Data Flash Technology
No Data Loss when battery is out or dead. Continues recording when it is connected to energy
Power Supply: 8…32 VDC
Energy Consumption: Average 10 mA. In normal conditions
Time Deviation: ±1 min./year RTC
Working Temperature: - 40 °C and + 80 °C / %95 humidity
Protection Class: IP: 65
GSM/GPRS Data modem connection, data exchange and setup through Serial Port
Area of Usage
Dams, Rivers, Underground Wells Agricultural Irrigation Fields Meteorology Stations
Hydroelectric Power Plants (HPP) Wind Power Plants (WPP) Photovoltaic Power Plant (PVPP)
